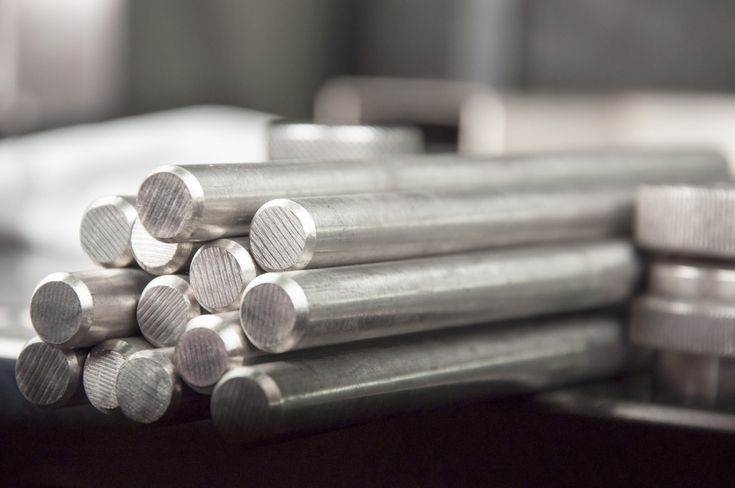

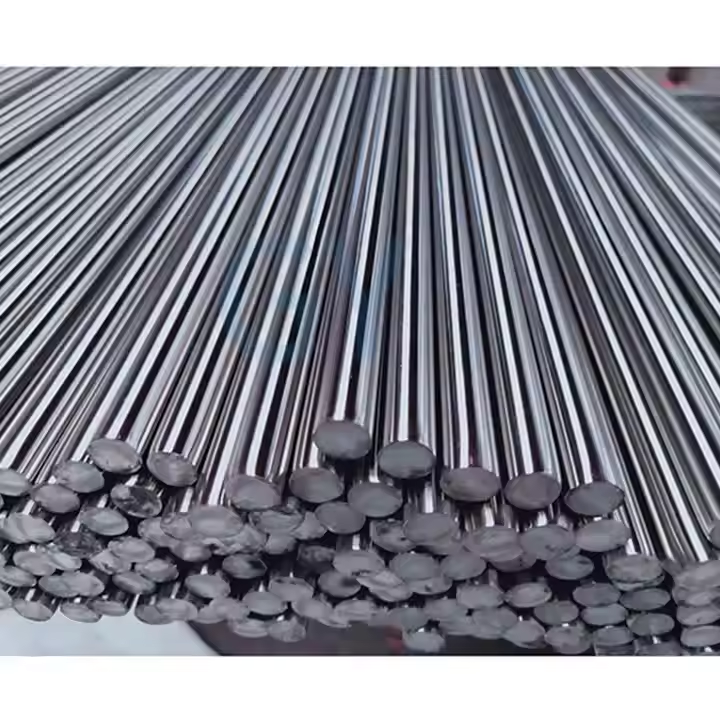

Monel 400 Rod

Monel 400 Rod
Monel 400 Rod is a nickel-copper alloy (about 67% nickel and 30% copper) solid solution strengthened rod with a single-phase austenite structure, showing excellent corrosion resistance and balanced mechanical properties. The alloy rod exhibits stable corrosion resistance in both reducing and oxidizing environments, and its unique crystal structure enables it to maintain excellent strength and toughness in the range of low temperature to medium and high temperature.
Phone : +8615852635738
Email : sale@tianguansteel.com
Wechat : +8615852635738
Whatsapp : +8615852635738
Product Description
Monel 400 Rod is a nickel-copper alloy (Ni~67%, Cu~30%) solid solution strengthened rod, and its single-phase austenite structure exhibits unique physical metallurgical properties. The alloy forms a dense crystal structure through atomic-level solid solution of nickel and copper elements, which makes it have intrinsic corrosion resistance in acidic, alkaline and salt spray environments. Its corrosion resistance mechanism originates from the passivation characteristics of nickel and the synergistic protection of copper, rather than relying on the protection of the surface oxide film.


The physical properties of the alloy rod are: density 8.80g/cm³, melting point 1300-1350℃, thermal expansion coefficient 13.9×10⁻⁶/℃ (20-300℃). Its mechanical properties can be significantly enhanced by cold working. When the cold deformation reaches 30%, the tensile strength can be increased from the original 550MPa to more than 900MPa, while maintaining an elongation of ≥35%. This unique work hardening property enables it to obtain engineering components with gradient performance through different deformation processes.


Product NameMonel 400 Rod
MaterialHastelloy/Incoloy/Nickel/Titanium/Monel/Inconel
Diameter4-50mm or customized
Length1000-5000mm or customized
GradeHastelloy: X, C-276, C-4, C-22, C-200, etc.
Incoloy: A286, 25-6HN, 27-7MMo, 25-6Mo, 20, 28, 330, 800, 800H, 825, etc.
Nickel: 200,201,270, etc.
Titanium: Gr.1, Gr.2, Gr.3, Gr.4, Gr.5, Gr.7, Gr.9, Gr11, Gr.23, etc.
Monel: 400, 500, etc.
Inconel: 600, 601, 617, 625, 690, 718, 725, X-750, etc.
Main marketNorth America, Europe, Middle East, Asia (chemical/energy-intensive regions)
Brand NameTISCO
Delivery time15-30 Days (Ready Stock: 7 Days)
Port of LoadingShanghai/Tianjin/Qingdao (or your port)
Price TermsFOB, CIF, CFR, EXW (according to customer requirements)
Export PackingWooden box + anti-rust paper (precision surface), or steel strapping (conventional)
Supply Ability3000 Tons/Month (Standard Sizes)
Payment TermsT/T 30% Deposit, L/C at Sight
