Product Description

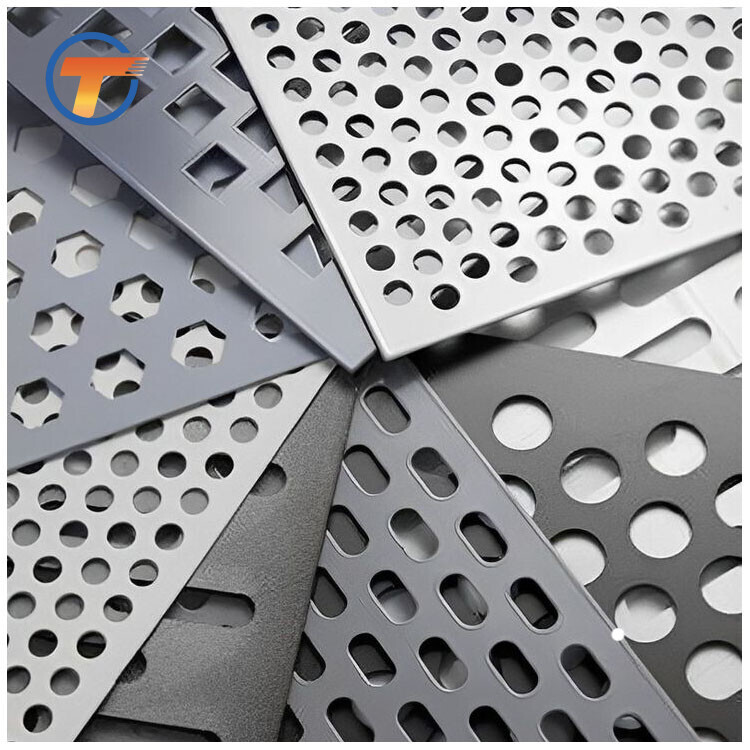

Product NamePerforated Metal Plate
Materials:Stainless steel, low carbon steel, aluminum, nickel or other alloys, etc.

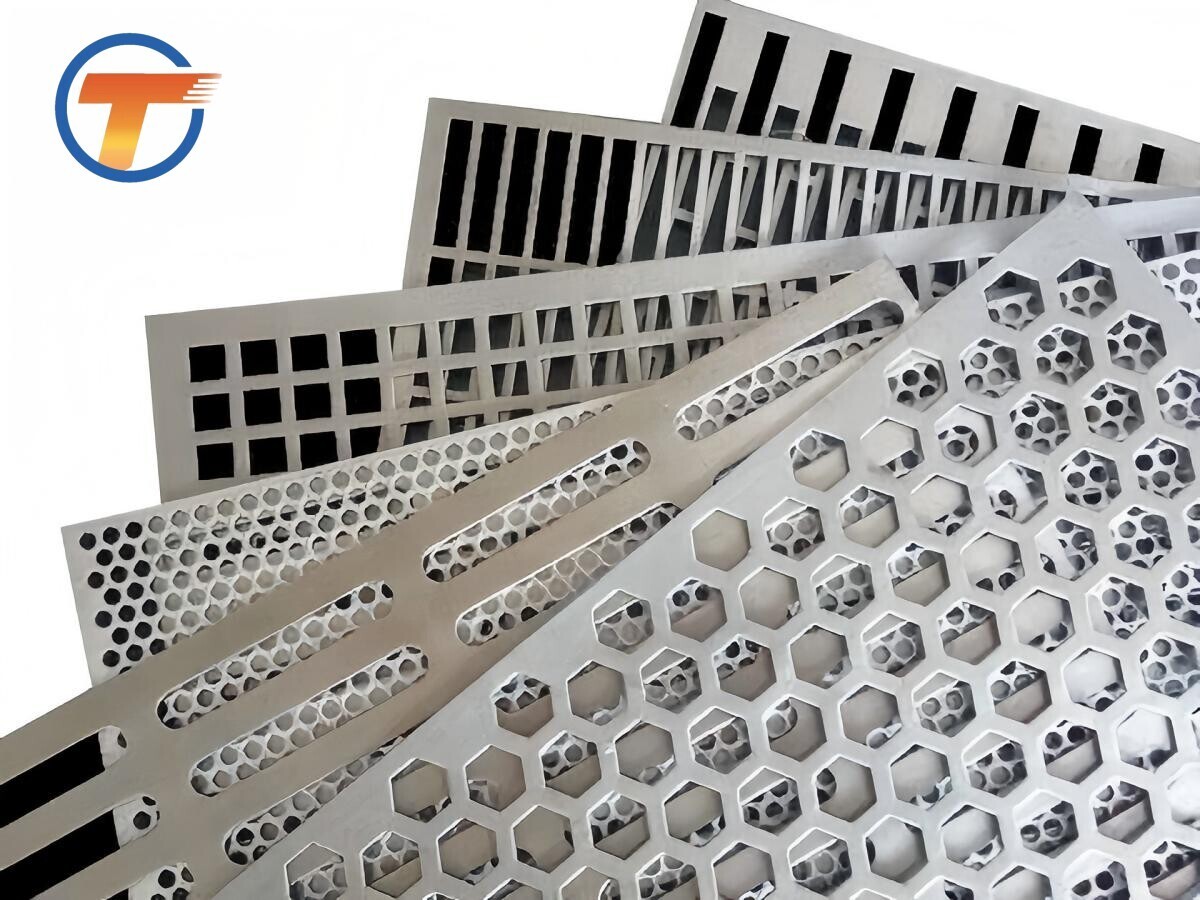

Hole shape:Mainly round, square holes, hexagonal, or customized upon request.
Thickness:0.3 mm, 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2 mm, etc, or customized upon request.
Hole pattern (for round holes):Straight line, 60° staggered and 45° staggered, or customized upon request.
Processing Service:Bending, Welding, Decoiling, Cutting, Punching.
Surface treatment:Galvanizing, PVC coating, PE.
Certificaion:ISO9001:2015,BV
Feature:Sturdy structure and strong support.Corrosion resistance, acid and alkali resistance.Outstanding wear resistance.Easy to cut and fabricate.Strong resistance to deformation.



Table 1: Specification of Round Hole Perforated Metal (Straight Line)
Hole SizeHole CenterOpen Area
inchmminchmm%
0.023"0.580.042"1.0722
0.027"0.690.05"1.2723
0.033"0.840.055"1.428
0.045"1.140.066"1.6836
0.05"1.270.083"2.1129
3/16"4.761/2"12.710
1/4"6.353/8"9.5334
1/4"6.351/2"12.720



Table 2: Specification of Round Hole Perforated Metal (60° Staggered)
Hole SizeHole CenterOpen Area
InchmmInchmm%
3/64"1.193/32"2.3823
1/16"1.593/32"2.3841
1/16"1.597/64"2.7827
1/16"1.591/8"3.1723
5/64"1.981/8"3.1736
3/32"2.385/32"3.9733
3/32"2.383/16"4.7623
1/8"3.173/16"4.7640
1/8"3.177/32"5.5630
1/8"3.171/4"6.2823
9/64"3.573/16"4.7651
5/32"3.973/16"4.7663
5/32"3.971/4"6.2834
3/16"4.767/32"5.5667
3/16"4.761/4"6.2850
3/16"4.765/16"7.9432
3/16"4.763/8"9.8323



Table 3: Specification of Round Hole Perforated Metal (45° Staggered)
Hole SizeHole CenterOpen Area
InchmmInchmm%
0.02"0.510.043"1.0920
1/32"0.791/6"4.2323
0.045"1.145/64"1.9832



Table 4: Specification of Square Hole Perforated Metal ( Straight Line and Staggered)
Hole SizeHole CenterOpen Area
InchmmInchmm%
0.06"1.50.12"3.023
0.07"1.80.14"3.524
0.08"2.00.12"3.040
0.08"2.00.16"4.023
0.1"2.50.14"3.546
0.1"2.50.16"4.035
0.12"3.00.2"5.033
0.12"3.00.24"6.023
0.14"3.50.2"5.044
0.16"4.00.2"5.058
0.16"4.00.24"6.040
0.16"4.00.31"8.023
0.2"5.00.28"7.046
0.2"5.00.31"8.035
0.24"6.00.33"8.545
0.24"6.00.35"9.040
0.24"6.00.39"10.033
0.28"7.00.39"10.044
0.31"8.00.43"11.048
0.31"8.00.47"12.040
0.31"8.00.59"15.026
0.39"10.00.51"13.054
0.39"10.00.55"14.046
0.39"10.00.59"15.040
