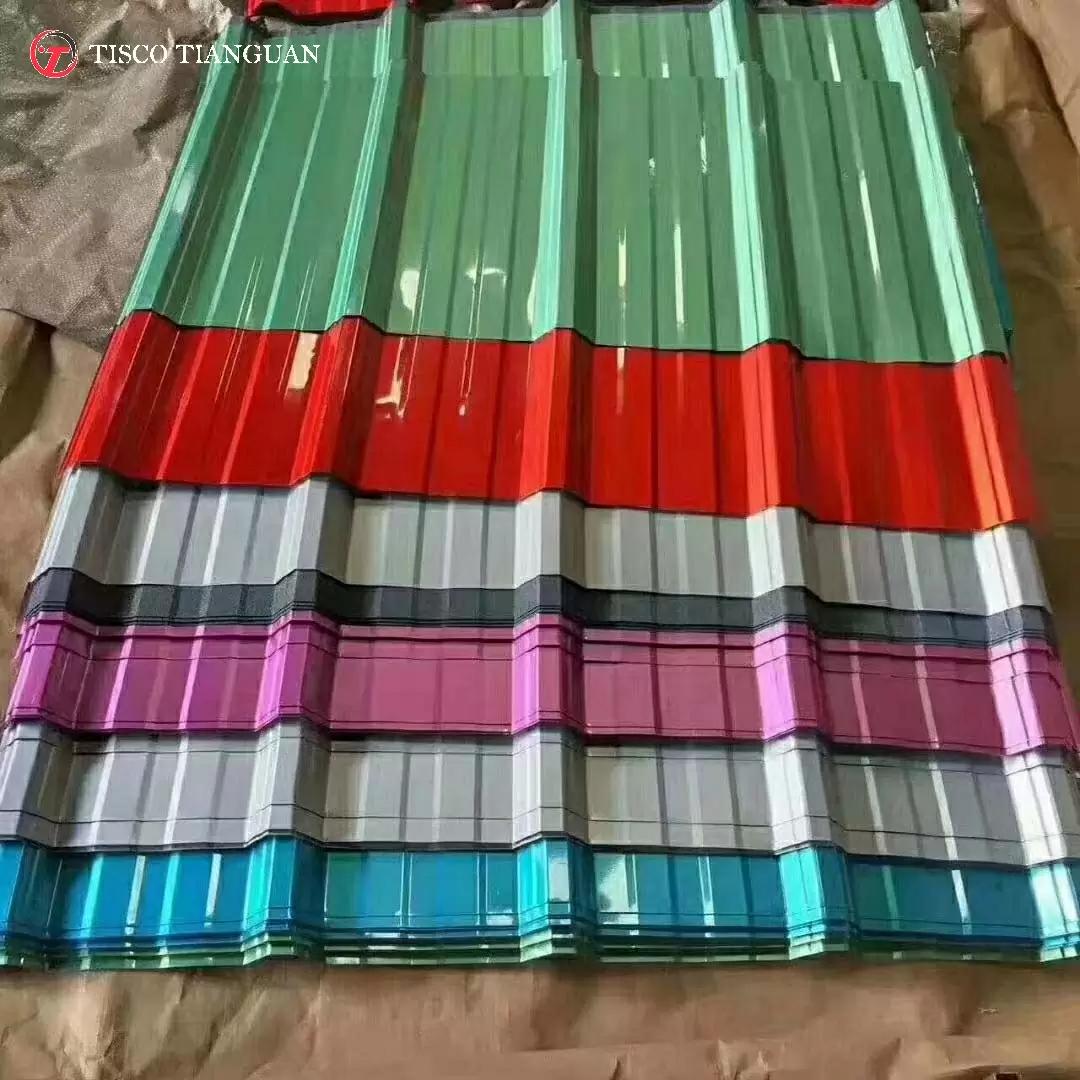

High-Strength PPGI/PPGL Steel Corrugated Roofing Sheet

High-Strength PPGI/PPGL Steel Corrugated Roofing Sheet
PPGI/PPGL Steel Corrugated Roofing Sheet is an anti-corrosion roofing material with a colored coating on the surface. The substrate is made of galvanized (PPGI) or galvanized (PPGL) steel sheet, which is formed into a corrugated structure by roller pressing. Its core advantage is that it combines the strength of the metal substrate with the decorativeness of the organic coating. The galvanized substrate (PPGL) has better heat resistance and long-term anti-corrosion properties (the service life can be up to 2-3 times that of ordinary galvanized sheets).
Phone : +8615852635738
Email : sale@tianguansteel.com
Wechat : +8615852635738
Whatsapp : +8615852635738
Product Description

PPGI/PPGL Steel Corrugated Roofing Sheet (color-coated galvanized/aluminum-zinc corrugated steel sheet) is a composite material with multiple layers of polymer coating applied on a metal substrate through a continuous roller coating process.


Its uniqueness lies in the perfect combination of the mechanical properties of steel plates and the functionality of polymer coatings. PPGI uses a galvanized substrate to provide basic corrosion protection, while PPGL uses an aluminum-zinc substrate to further enhance high temperature resistance and corrosion resistance, which is particularly suitable for highly corrosive environments such as chemical zones and coastal areas.


The corrugated design of this sheet not only improves the structural strength, but also effectively guides rainwater discharge and reduces the risk of water accumulation. The surface coating can be customized with a variety of special functions, such as self-cleaning coatings to reduce maintenance costs, high-reflective coatings to reduce building energy consumption, and even antibacterial ingredients can be added for food and pharmaceutical plants. During installation, the unique overlap design can achieve rapid construction, which can save more than 30% of the construction period compared to traditional building materials, while meeting the comprehensive needs of modern buildings for lightweight, environmental protection and design aesthetics.


Product NamePPGI/PPGL Steel Corrugated Roofing Sheet
TypeRegular Wave/Tile Wave/European Wave (custom patterns available)
Thickness0.12mm-1.2mm (base metal thickness)
Width600mm-1250mm (coverage width after corrugation)
LengthCustomized (1m-12m standard lengths)
StandardASTM A755/A755M, EN 10169, JIS G3322, GB/T 12754
Surface FinishPVDF/HDP/Polyester coating (25-200μm), embossed/smooth
ApplicationIndustrial roofing, warehouse, agricultural buildings, facades
CertificationISO 9001, CE, SGS, RoHS compliant
TechniqueContinuous coil coating + roll forming
EdgePlain cut/hemmed edges (water drip edge optional)
QualityClass I coating (no visible defects), salt spray resistance 500-2000h
Grade (ASTM)ASTM A653 (G90/Z275), A792 (AZ50)
Grade (EN)DX51D+AZ, DX52D+AZ, DX53D+AZ
Main MarketSoutheast Asia, Africa, Middle East, South America
Brand NameTISCO
Delivery Time15-25 days (standard), 7-10 days (stock items)
Port of LoadingShanghai/Qingdao/Ningbo (or specify your port)
Price TermsFOB, CIF, CFR
Export PackingWaterproof woven PP + edge protectors + steel strapping
Supply Ability200,000㎡/month (can expand for large projects)
Payment TermsT/T 30% deposit + 70% before shipment, L/C at sight
