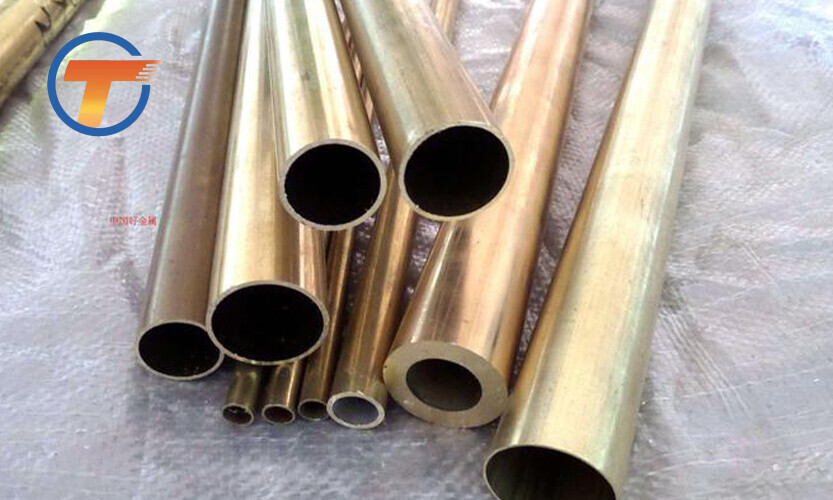

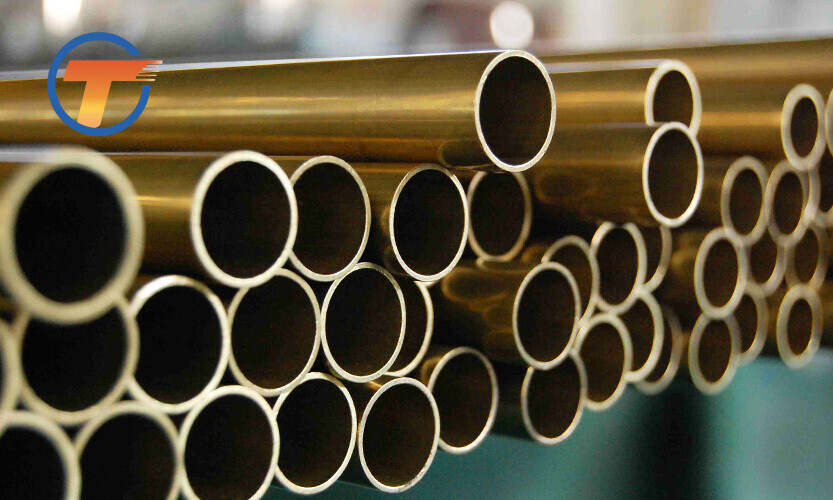

Economical and Practical Corrosion Resistant C24000/H80 Brass Pipe/Tube
C24000/H80 Brass pipe/tube is a medium copper brass tube containing 80% copper, which achieves an ideal balance between mechanical properties and processing performance. Its tensile strength can reach 350-500MPa (hard state), while maintaining an elongation of more than 40%, which not only meets the strength requirements of structural parts, but also is suitable for complex forming processes such as stamping and bending.
Email : sale@tianguansteel.com
WhatsApp:+8615301539521
WeChat:+8615301539521
Phone : +8615301539521
Contact Us

Product Description

C24000/H80 Brass pipe/tube is a medium copper brass tube containing 80% copper, which achieves an ideal balance between mechanical properties and processing performance. Its tensile strength can reach 350-500MPa (hard state), while maintaining an elongation of more than 40%, which not only meets the strength requirements of structural parts, but also is suitable for complex forming processes such as stamping and bending.


The surface of this material can be polished to a mirror effect, and it shows excellent corrosion resistance in fresh water and atmospheric environment. It is often used in fields with high surface quality requirements such as high-end musical instrument tubes and architectural decorative pipes.


Compared with high-zinc brass tubes, H80 brass tubes have better cutting performance (tool wear is reduced by more than 20%) and hot processing adaptability (hot forging temperature 650-800℃), while the conductivity is maintained at around 30%IACS, which is suitable for low-voltage electrical appliances and other application scenarios that require both conductivity and strength. Its cost is 15-20% lower than that of H90 brass tubes, and it has significant advantages in cost-sensitive projects such as lock hardware and ship fresh water systems.


Product Parameters


Outer Diameter

2mm-300mm, or customized

Wall Thickness

0.2mm-50mm, or customized

Length

Customized

Standard

ASTM, AISI, JIS, GB, DIN, EN

Brand

C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930,

C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200,

C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000,

C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800,

C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200,

T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect.

Surface

Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing As Required

Certification

ISO, SGS, BV

Payment Method

FOB, CRF, CIF, EXW Acceptable

Port of Loading

Any port in China

Delivery Time

Received 30% after deposit 7-15 working days


Chemical Composition


Copper

With:

Zinc

Zn:

Lead

Pb:

Iron

Fe:

79~81

Allowance

≤ 0.03

≤ 0.10

Antimony

Sb:

Bismuth

Bi:

Phosphorus

P:

Impurity:

≤ 0.005

≤ 0.005

≤ 0.01

≤ 0.3


Mechanical Properties


Tensile Strength

Kb (MPa):

Elongation

D10 (%):

≥265

≥50
